OSD070T0998-37
OSD070T1141-35TS
OSD070T1141-35TS.
A low mix, high volume 7" 800x480 TFT-LCD solution with 4-wire resistive touch panel. Available with production lots greater than 10K.
OSD25664P0909-10
OSD25664P0909-10.
In addition to the conventional benefits of OLED displays, such as a viewing angle of more than 160° independent of direction and low current consumption, many developers still unaware of the service life of this technology. OSD Displays can supply the perfect reply to this in the form of its 3.12 256x64 yellow monochrome PMOLED display OSD25664P0909-10. This display has a specified service life of at least 40,000 hours if used according to spec. It should be mentioned that this service life specification describes the point at which the display possesses 50% of its initial brightness. The display will therefore not have to be replaced after 40,000 hours but can carry well after in use, depending on brightness requirements. This PMOLED is also available in blue and white versions
OSD12864P1140-18
OSD12864P1140-18.
OSD Displays (Orlando, FL) is a premier manufacturer of passive-matrix OLED display panels. The OSD12864P1140-18, measures in at 2.52 diagonal active-area in a 128x64 pixel resolution. Similar size color PMOLED displays require separated OLED drive and OLED logic power supplies. This model solves this issue with on-board step-up power supply, requiring only a single 2.4V to 3.5V power source. The OLED offers a vibrant viewing with over 160 degrees viewing and high contrast ratio >2000:1. nnThe OSD12864P1140-18 offers a CPU/MCU type 8 bits interface supporting a wide variety of systems. The display features a 100k hrs life (based on 70 nits, checkerboard, based on 25*C). The display is rugged supporting -40 to 80 degrees C operation and storage. n
OSD043T0358-37TS
OSD043T0358-37TS.
In our growing effort to support the most modern and cutting-edge technology, OSD Displays now offers a 4.3” TFT WQVGA resolution TFT display with projective capacitive touch panel. The OSD043T0358-37TS offers an LED backlight 480xRGBx272 image with 16.7M color (24 bit) color depth. The display supports -20 to 70 degrees C operating temperature and 415 cd/m^2 luminance. The robust capacitive touch panel surface supports the use of a cover plate for a durable enclosure and interfaces your system with an I2C interface. The unit measures 6.2 mm thickness (excluding cover plate shown in the marketing image, but not included with this module number). OSD can support customized cover plate development and integration at our factory, or may have suitable cover plates to pair with this unit upon request. Other size TFT and projective capacitive touch panels are available from OSD now, available upon request. Contact us today for more information on these exciting new offerings.

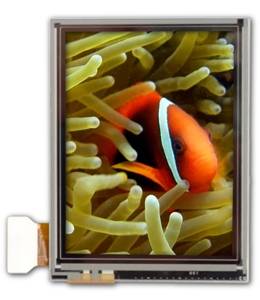

OSD035T0716-29
OSD035T0716-29.
The new OSD035T0716-29 TFT offers a wonderful solution to all those seeking to upgrade the outdated monochrome STN LCD look without investing in significant upgrades in your system processor. This 3.5” TFT measures 77.0 x 64.0 x 3.3 mm (W x H x D) outline dimensions and features an i80 system interface with an 8-bit data bus. The display is vibrant with 65k/262k color depth (driver selectable) and 300 cd/m2 brightness at 400:1 contrast ratio. The display offers industry-competitive power specification using a 6-LED backlight running at the specified brightness @ 384mW. Temperature specification of -20 to 70 oC operating range and -30 to 80 storage. This display packs a big punch for upgrading systems and is ideal for systems and controls featuring full mostly full color menus that don’t have any benefit from the higher data rates parallel interface TFT versions. This solution saves expense in processor overhead and system complexity and can often utilize hardware platforms built around more legacy STN LCD displays
OSD070T0704-29
OSD070T0704-29.
OSD Displays has introduced a new 7” WVGA 800 x RGB X 480 TFT with White LED backlighting. This new 7” TFT is fully RoHS compliant, and our most cost-competitive build. The OSD070T0704-29 offers a high 500:1 contrast ratio, high color saturation and wide viewing angles. The efficient LED backlight provides a uniform luminance of 350 cd/m2. Alternate versions are available with higher or lower brightness for cost-sensitive or sunlight-reading applications. The display supports extended operating temperatures from -20C to 70C and storage temperature from -30C to 85C. Ideal for industrial applications and controls the OSD070T0704-29 is fully warranted and first quality.
OSD154T0361-22
OSD154T0361-22.
OSD Displays offers a 15.4" TFT that features an High Definition (1200xRGBx800) resolution with an LVDS interface. The 15.4" color TFT is capable of full video for industrial monitor applications, wide viewing angles, great color depth, and easily integrates with common small board computer based systems and many common microprocessor interfaces. The display offers a fast response time and industrial operational temperature range of -30 to 80 degrees C.
OSD057T0707-29
OSD057T0707-29.
OSD Displays offers a 5.7” TFT, item OSD057T0707-29, featuring a High-Brightness 900 nits (cd/m2) LED backlight for industrial and medical applications. This display classifies for most applications as sunlight readable. The 5.7” 640 x 480 color TFT is capable of full video, wider viewing angles than passive displays, and greater color depth. It also easily integrates with small board computer based systems. The display offers industry standard 5.7” VGA form factor similar to legacy LCD displays for your system upgrade needs. It is also available with and without a resistive touch panel.
Support Files
Posted on: September 28, 2010OSD12864P0621-21
OSD12864P0621-21.
OSD is adding a new 128x64 format OLED to our line of passive OLED displays. The OSD12864P0621-21 now adds a 2.4” diagonal option to our lineup, and an option between 2.7” and 1.54” options. This new PMOLED display features a parallel 8-bit TTL interface, using the SSD1305 chipset supporting 1 bit/pixel shading of this blue emissive design. This module offers a connector-type interface tail. Other similar versions of this new size are available in other colors and connector methods. This module features an outline of 60.50mm (H) x 37.0mm (V) x 2.1 mm (D). The active area is 55.01 (H) x 27.49 (V) which is suitable size for many portable media applications and handheld devices. This display is ideal for portable applications with an ultra-slim module design, power-efficient OLED technology that only illuminates the pixels you need lit, and high-contrast image. The display module is fully RoHS compliant, has high viewing angles at 160/160 degrees (H/V). This OLED has an industrial operating temperature range of -40°C to 70°C and a storage temperature range of -40°C to 85°C.
